Products Description

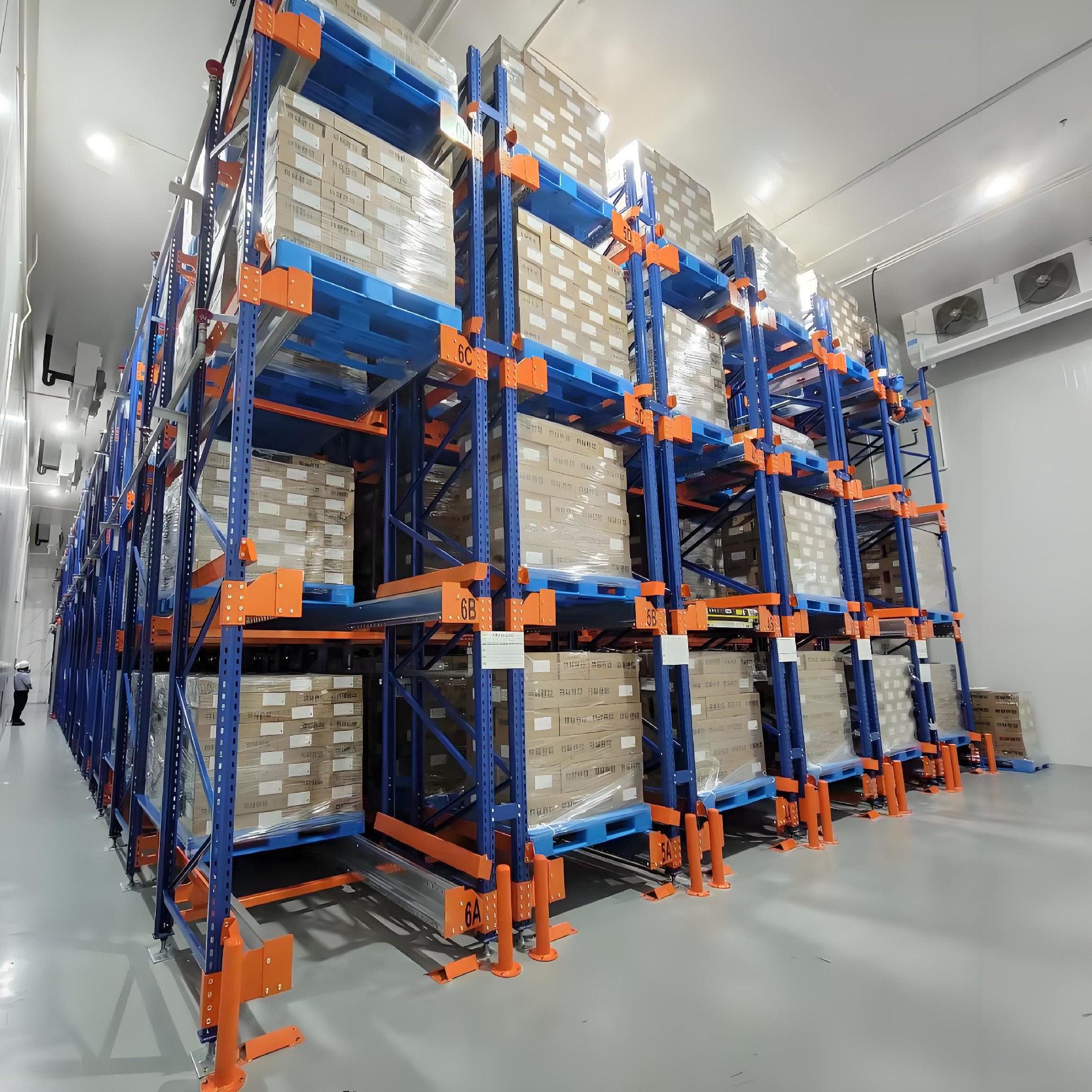

Radio Shuttle Car Rack is a type of high-density storage racking system used in warehouses. It's part of the shuttle rack system, which allows for efficient storage and retrieval of goods. The key feature of a radio shuttle car rack is the use of a radio shuttle (a motorized vehicle) that moves along the rack's aisles to transport pallets into and out of the storage lanes.
Shuttle Rack supports FIFO(First-In-First-Out)or FILO(First-In-Last-Out)storage styles,ideal for industries like cold storage,food,and logistics.
Technical Specifications：
1.Load Capacity:Up to 1,500 kg per pallet.
2.Pallet Dimensions:Customizable,typically ranging from 800×800 mm to 1200×1200 mm.
3.Storage Depth:Supports up to 20 pallets deep and 3–7 pallets high.
4.Material:Heavy-duty steel(Q235 or SS400 grade)with powder-coated finishes.
Customization and Flexibility：
1.Systems can be tailored to warehouse height(up to 15 meters)and layout.
2.Available in standard colors(blue,orange,green,etc.)or custom hues.
Certifications and Safety：
1.Compliant with CE,ISO9001,and SGS standards,ensuring quality and safety.
2.Features include ESD protection and acid-cleaned surfaces for durability.
Product Parameter:
| Rack Structure | |
| Material | High-quality steel, typically powder-coated for durability. |
| Height | Typically ranges from 6 meters to 12 meters, depending on available space and storage requirements. |
| Depth | Typically between 2 meters and 6 meters, depending on the type of goods and the shuttle's reach. |
| Width | Standard widths are 1200mm (Euro pallet) or 1000mm (US pallet), based on pallet size. |
| Rack Layout | Single-deep or double-deep storage, with each lane storing 1 to 2 pallets per level. |
| Radio Shuttle Parameters | |
| Max Load Capacity | The shuttle typically handles pallet loads from 500kg to 1500kg, depending on the model. |
| Speed | Shuttle speed ranges from 0.5 m/s to 1.5 m/s, depending on system configuration. |
| Battery Life | The shuttle typically operates for 8 to 16 hours on a single charge, depending on the configuration. |
| Charging Method | The shuttle usually charges automatically at the end of each lane via a charging station. |
| Load Handling | The shuttle supports various pallet types, and some models offer adjustable widths for different sizes. |
| System Capacity | |
| Max Number of Lanes | The system can accommodate 4 to 12 lanes, depending on warehouse size and shuttle capacity. |
| Storage Density | The system typically offers 30-40% higher storage density than conventional rack systems due to deep storage configurations. |
| Pallet Compatibility | |
| Euro Pallet Size | 800mm x 1200mm |
| US Pallet Size | 1000mm x 1200mm |
| Custom Pallet Size | Some systems can be customized to fit non-standard pallet sizes for special storage needs. |
| Control & Communication | |
| Radio Control | The shuttle is controlled via radio frequency communication to receive commands and data. |
| Automatic Storage/Retrieval | It can integrate with a Warehouse Management System (WMS) or an Automated Storage and Retrieval System (ASRS) for fully automated operations. |
| Safety Features | |
| Obstacle Detection | Sensors on the shuttle prevent collisions and ensure safe movement. |
| Emergency Stop | Emergency stop buttons are installed at various points throughout the rack system. |
| Battery Backup | Battery backup ensures the shuttle operates during power outages. |
| Other Optional Features | |
| Energy Efficiency | Some systems feature energy-saving designs, such as regenerative braking on the shuttle to reduce power consumption. |
| Customizable Layout | The rack layout can be adjusted to accommodate changing storage needs. |
| Maintenance | |
| Scheduled Maintenance | Regular inspections and maintenance are recommended for optimal system performance. |
| Spare Parts Availability | Manufacturers typically provide easy access to spare parts for repairs and replacements. |
