We design and manufacture selective pallet racking, drive-in, mezzanine, shuttle and AS/RS systems for warehouses, factories and logistics centers — from free layout drawing to overseas installation support.
Four controls we run in our own Guangzhou plant, not claims copied from a catalogue.
Seven systems, compared on the four things that actually decide a layout: what it suits, how much space it saves, what it carries and how fast you can pick.
Swipe horizontally to see every column
| System | Best for | Density | Load capacity | Picking |
|---|---|---|---|---|

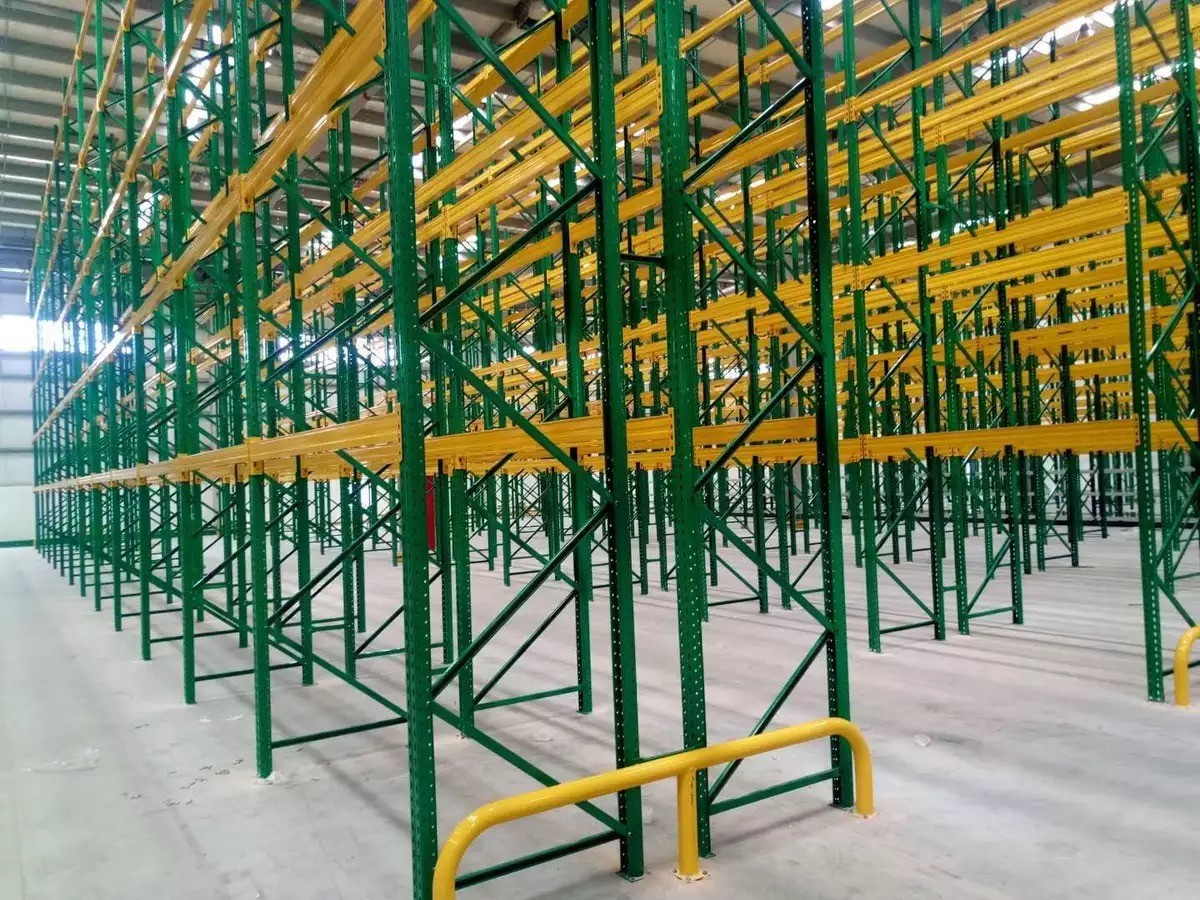

| Selective pallet racking | Mixed SKUs, fast-moving goods | Low – medium (about 35%) | 500–4,000 kg per level | 100% direct access |

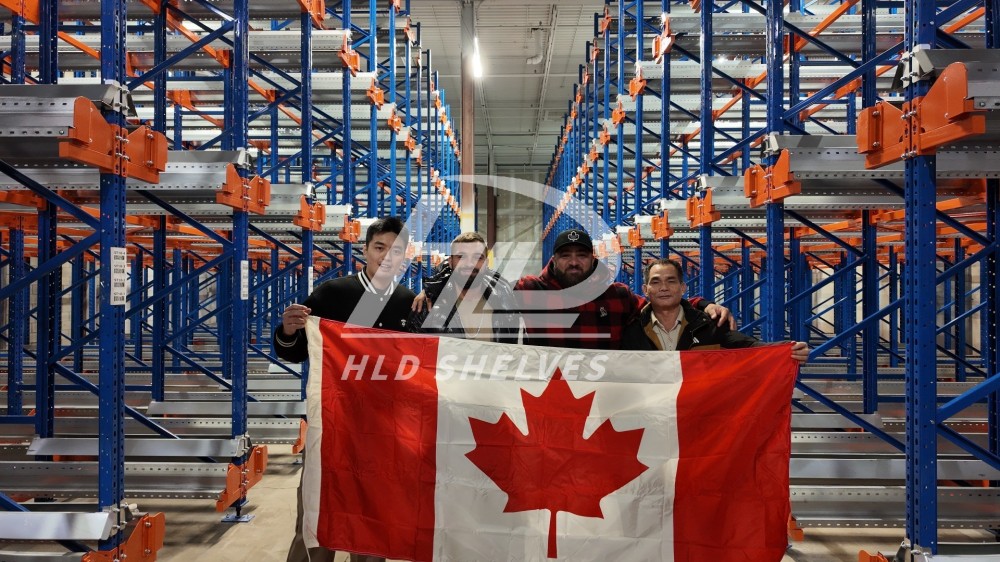

| Radio shuttle racking | Large batches, low SKU count | Very high (about 80%) | 1,000–1,500 kg per pallet | Semi-automatic |
| Drive-in racking | One SKU per lane, bulk storage | High (about 65%) | 500–1,500 kg per level | LIFO, no direct access |
| Double deep racking | Fewer SKUs, density over speed | Medium – high (about 50%) | 500–1,500 kg per level | LIFO, 50% selectivity |
| Four-way shuttle racking | Many SKUs, flexible high-density storage | Very high (about 85%) | 500–1,500 kg per pallet | Semi-automatic, any-position access |
| Narrow aisle racking | Full warehouses, usable height above 9 m | Medium – high (about 50%) | 500–1,500 kg per level | VNA truck access |
| Mezzanine floor | Small parts, manual picking | Medium (adds a usable floor) | 300–1,000 kg per m² | Multi-level manual |
Rule of thumb: mixed SKUs with fast picking → selective racking; one SKU per lane → drive-in; density over speed → double deep or radio shuttle; small parts picked by hand → mezzanine floor.
Still not sure which system fits? Send us your pallet size, SKU count and ceiling height — that is usually enough for us to recommend one.
Our partners cover countries in Oceania, Asia, Europe, South America, the Middle East, and other regions
Send us your racking drawings, pallet sizes or storage requirements. Our engineers reply within one working day with a free layout suggestion and budget price.
Send the bay size, the load per level and the destination port — a layout drawing and a budget price come back within one business day.
